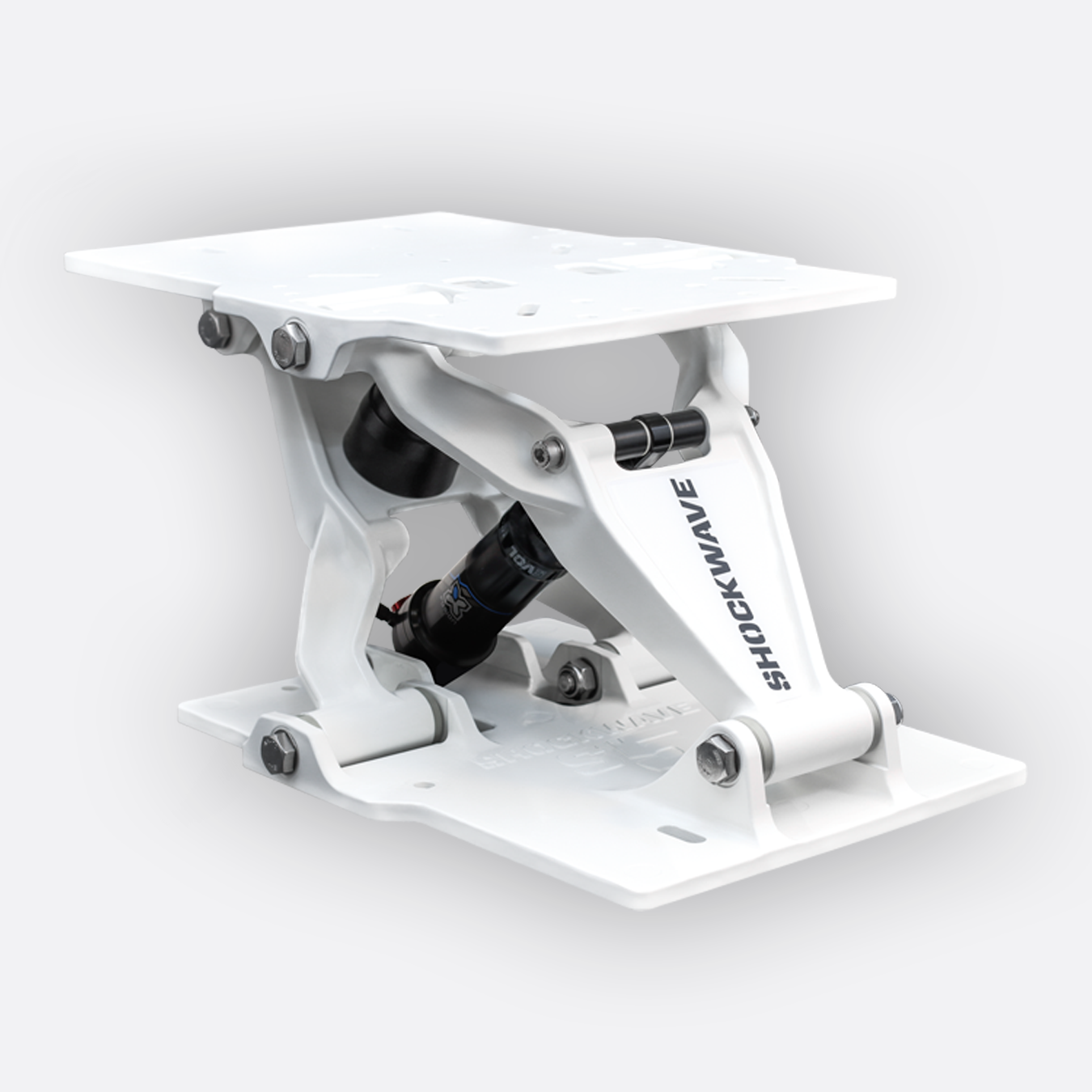

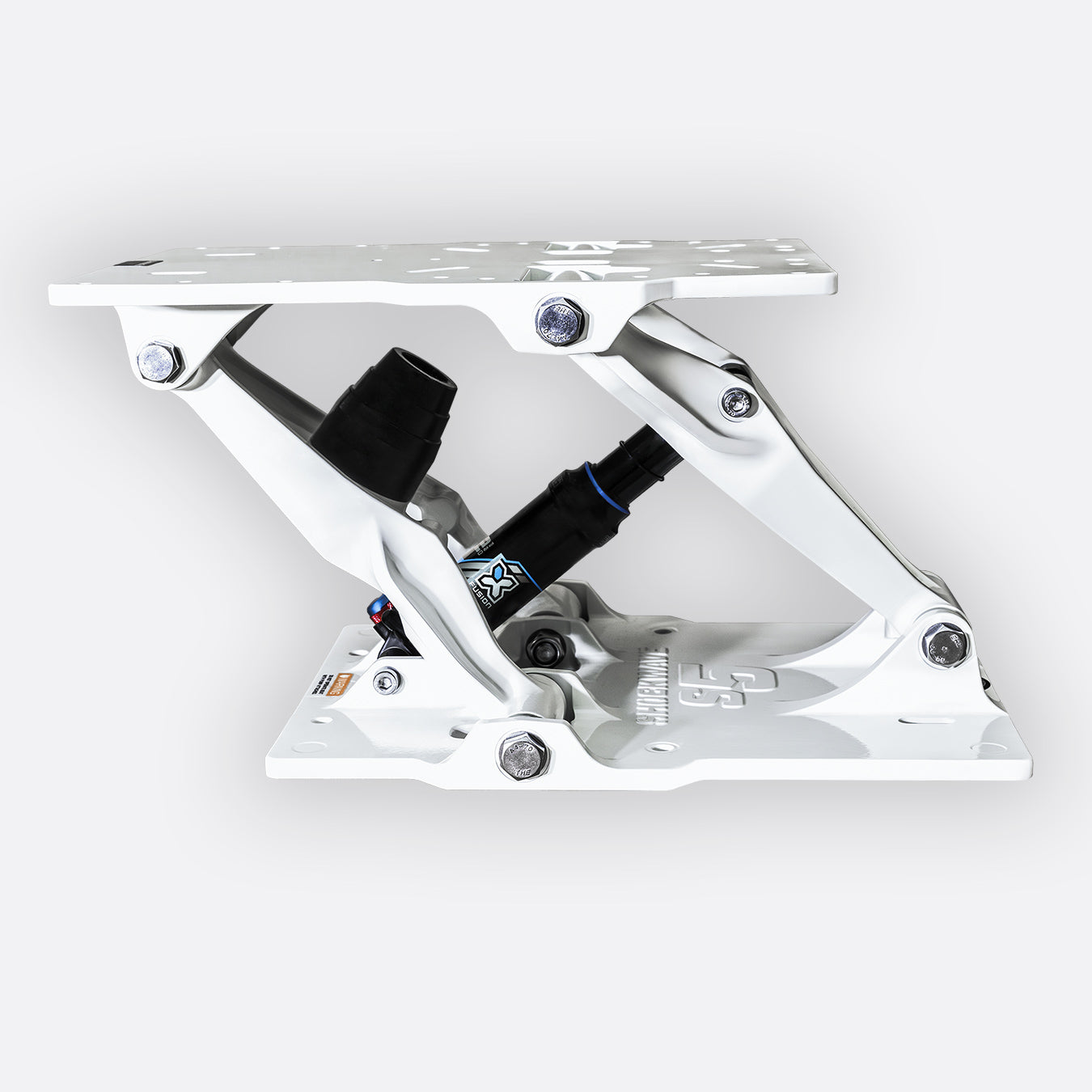

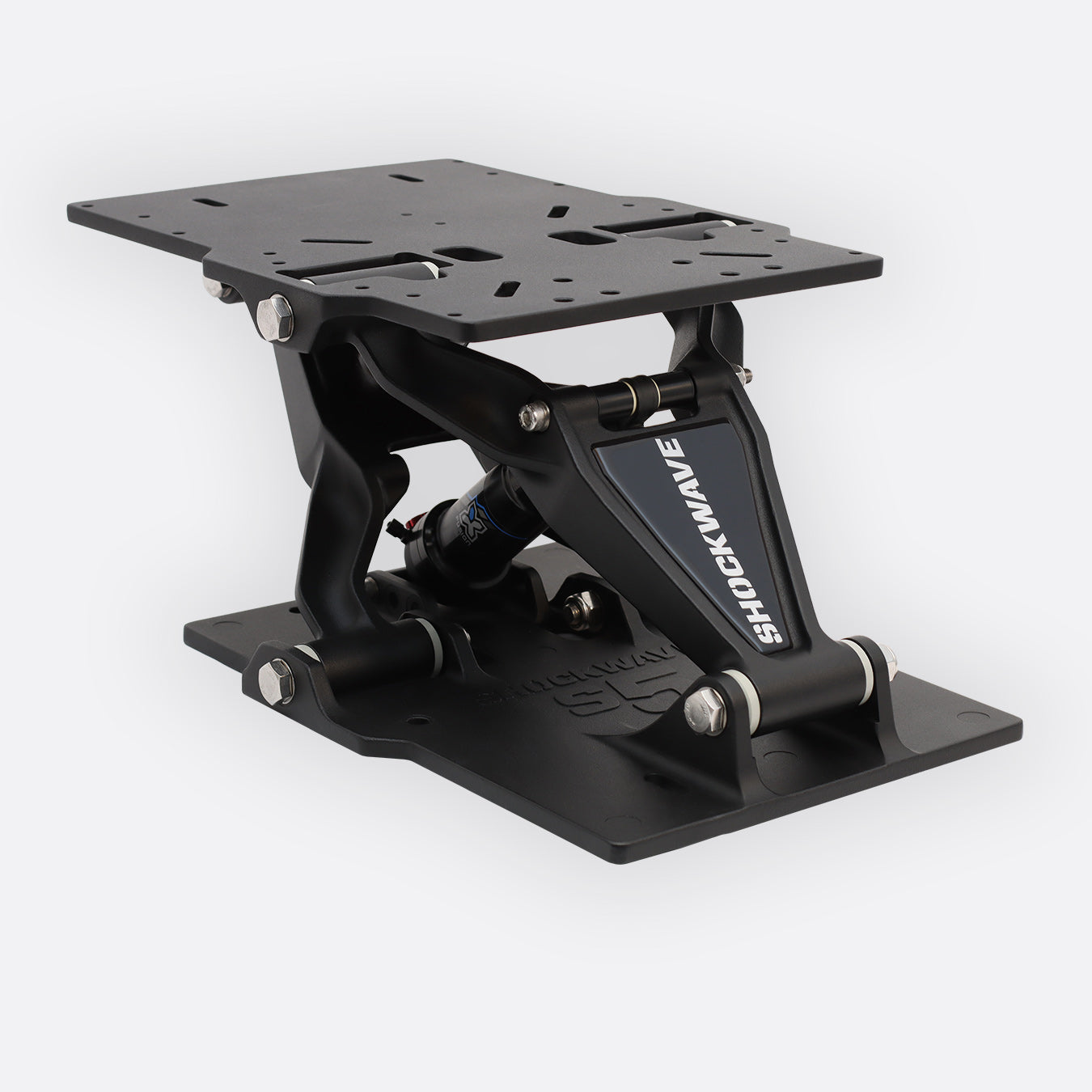

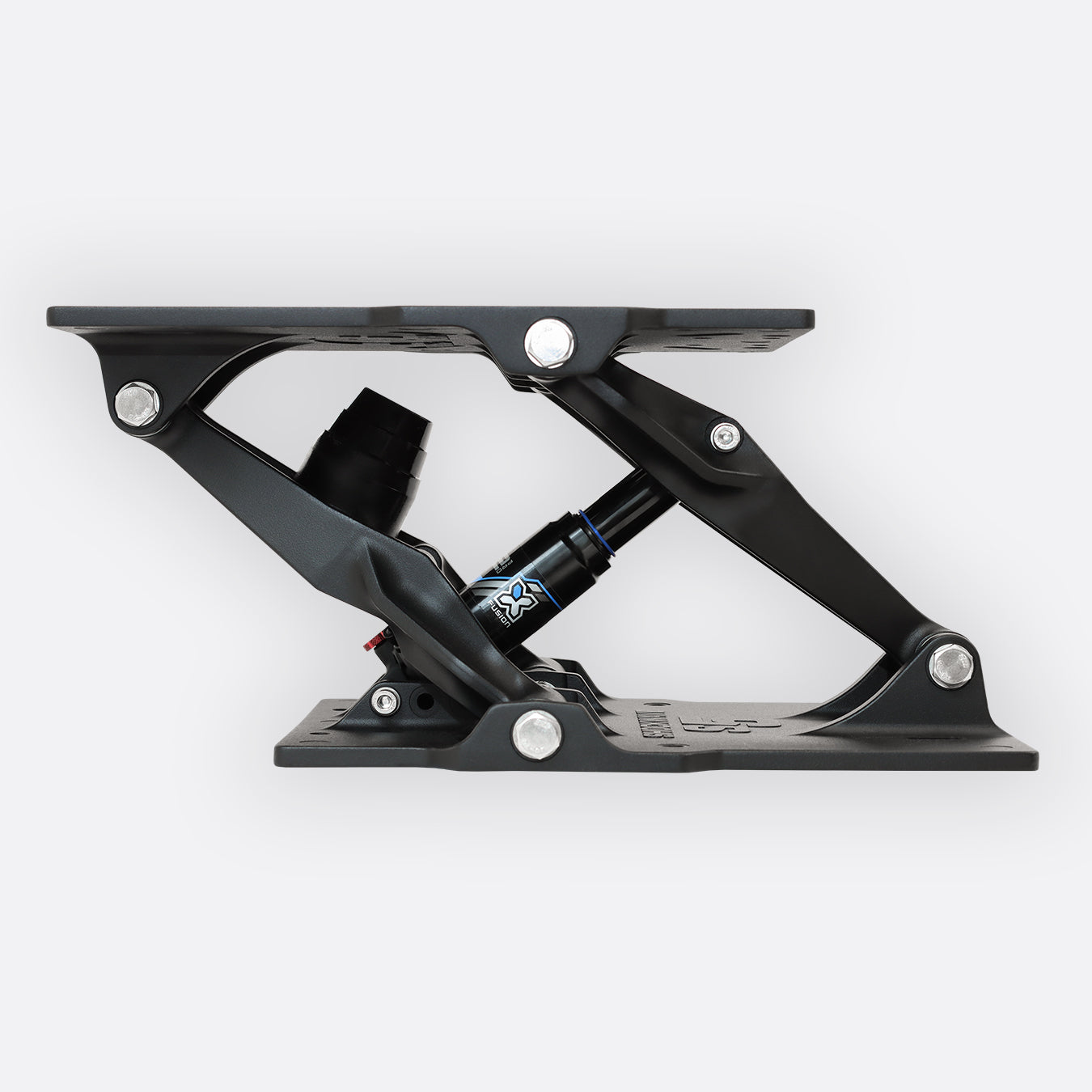

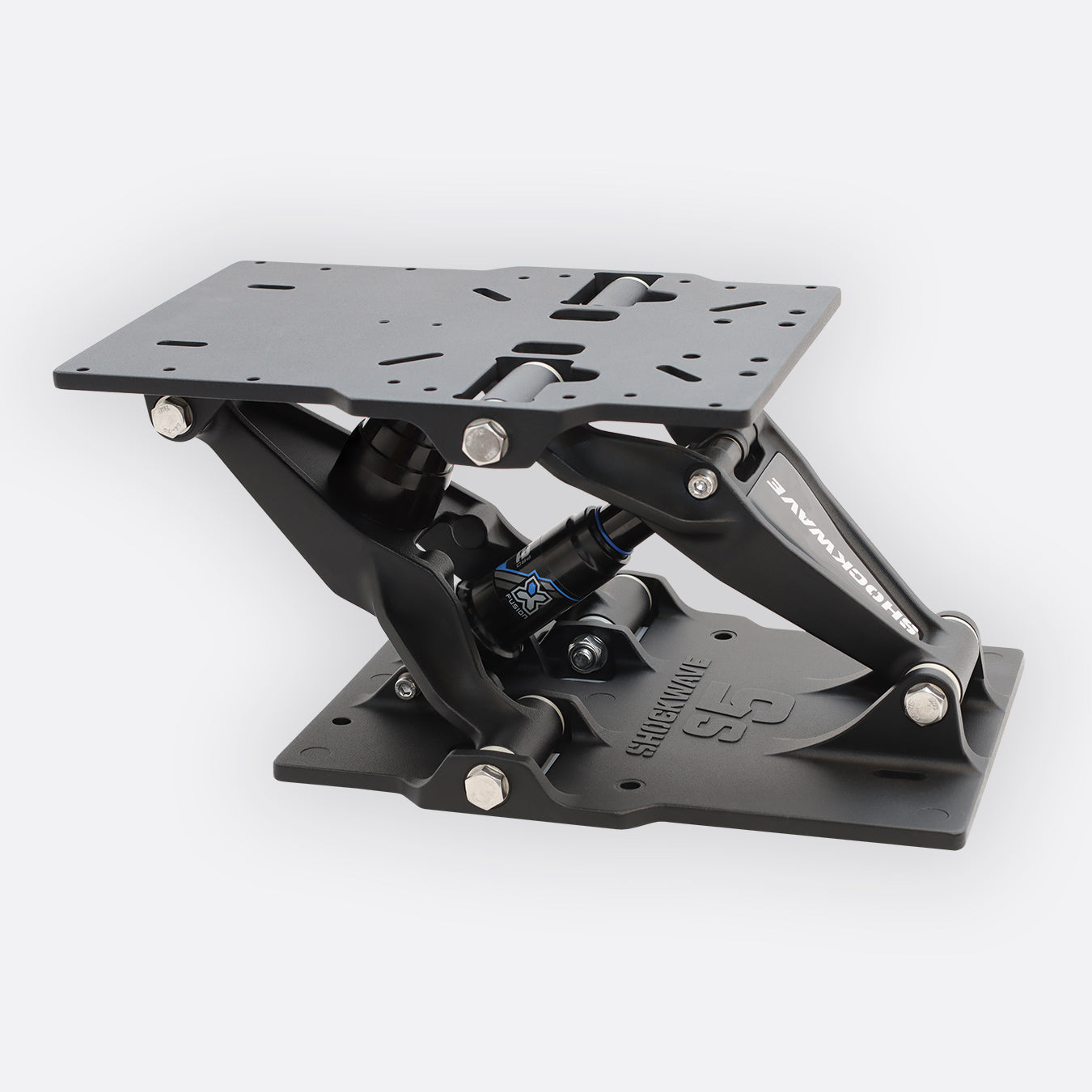

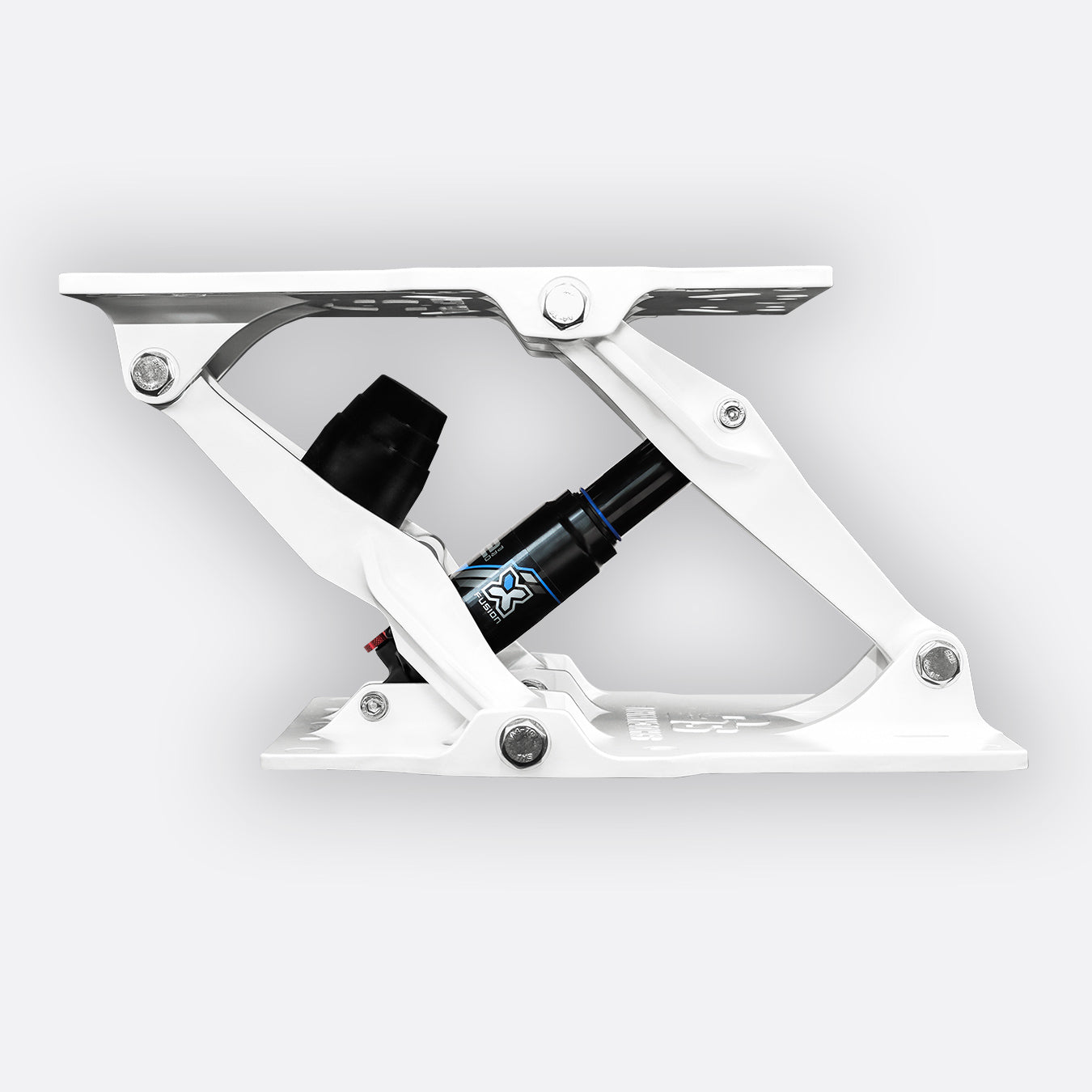

S5-LW Suspension Base
Coming soon: The Shockwave S5-LW lightweight marine suspension base is our entry-level recreational suspension option. Designed to mitigate the shock of wave impact in light seas on freshwater lakes or cabin boats on the ocean. Constructed using anodized cast A360 aluminum with a powder coat finish.
Made from anodized A360 cast aluminum that has been powder coated and fitted with 304 stainless steel hardware, the S5-LW suspension base utilizes a three-link forward action suspension design.
Fitted with an X-Fusion O2 PRO R air spring and shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.
The Shockwave S5-LW suspension base will be available to order in May 2025, and will ship in late June.
Spec Sheet & Dimensional Drawing
Drill Template
Features & Benefits
Vessel Application
Warranty & Returns
Product returns are to be made to the Shockwave Seats manufacturing facility.
Shockwave Seats
Unit 2-2075 Henry Ave West
Sidney, BC
Canada
V8L 1T2
Customers are responsible for freight process and return freight costs. Returned products must be unused, free of damage, and in the original packaging. Product returns are subject to a 10% restocking fee. Refunds are processed after inspection and approval of returned products.
Dimensions
Weight
Weight capacity
Feel Better. Travel Farther.
S5 Product Line
Shockwave's S5 Suspension Bases absorbs wave shock and can help prevent high-impact and cumulative injury. It can be installed on any boat, bringing Shockwave technology to people who want to stay out longer, fish/play harder and keep comfortable. In any conditions, Shockwave has your back.
- Easy to install
- Can be paired with almost any seat
- On-the-fly adjustment – rebound & compression rates
The Future of Marine Suspension Seating
- Made in Canada
- Custom tuned and valved, fully adjustable marine FOX shock absorber
- Shockwave is internationally recognized as a premium suspension seat company
Contact Our Sales Team
Questions?
Reach out to our sales team if you have any questions about this product.
Please fill out this form for an inquiry, send an e-mail to sales@shockwaveseats.com or call 1.778.426.8545
Our customer support is available Monday to Friday: 8am-5:30pm.
S5 Sentinel
FAQs
Is there an advantage of buying through a dealer?
Ordering through a dealer enables you to talk to real people about the product and ask questions ahead of making a purchasing decision. Our dealer’s prices are often better than on our website. Our dealers can generally get your products faster than purchasing direct through our website. Some dealers may display products in their store so you can actually sit on the suspension seat and see how it works, prior to purchasing. Also, some of our dealers stock product, so you can walk away with your new S5 Sentinel Suspension Module.
Is it necessary to buy a Shockwave shock pump with my S5 Suspension Base?
Yes, every boat should have one pump onboard, regardless of how many Shockwave S5 Suspension Bases are installed. You will need the pump to adjust the pressure at set-up, and the pump will need to be used if an occupant much heavier or lighter than the primary occupant (more than a 50lbs difference) is using it. Also, the pressure should be checked every year and the S5 Suspension Base may need to be adjusted slightly.
How much does the S5 Suspension Base weigh?
~ 27lbs (12.2kg)
What is the travel of the S5 Suspension Base?
It offers 4” of vertical travel.
What type of material is the S5 Suspension Base made of?
Marine grade cast aluminum with 316 stainless steel hardware.
How high is the S5 Suspension Base?
8.5” (21.5cm)
Does the S5 Suspension Base move forward at all?
Yes. When fully compressed, the suspension base causes the seat to travel forward 1.5".
What is the load capacity of the S5 Suspension Base?
The maximum occupant weight for the S5 Sentinel module is 250lbs
[113kgs] on a vessel that sees maximum deck accelerations of 3g’s. For calmer waters and deck accelerations of less than 2g’s, a 300lb [136kg]
occupant is acceptable.
Can the S5 Suspension Base be mounted on a pedestal?
Yes, the S5 Suspension Base can be mounted on a pedestal, but only if it is very stout and wide, with a rectangle shaped top plate that is strong enough to support the S5 Sentinel (27lbs), the seat (20-30lbs), and the occupant, plus the additional vertical and horizontal stress from the wave impacts. It’s much better to mount it to a riser box.
Can I use the S5 Suspension Base with a Shockwave accessory, paired with a non-Shockwave seats?
Should you decide to add a Shockwave swivel, slide or swivel/slide accessory, you might want to go with our seat as well. Our seats were designed to work with our accessories. Therefore, if you want to use our accessory with a non-Shockwave seat, you will need to add an adapter plate that enables them to bolt the seat of your choice to our slide/swivel accessory. We sell a 5"x12" adaptor plate, call for
details.
Any questions?
You can contact us through our contact page or via e-mail to sales@shockwaveseats.com or call us under 1.778.426.8545!
We will be happy to assist you.
Changing the game of marine suspension seating
Quality Craftsmanship
Since 2001, Shockwave has designed and manufactured innovative marine suspension seating to protect boaters from the shock of wave impact. From recreational boaters to military vessels, we develop the best suspension bases on the planet.
